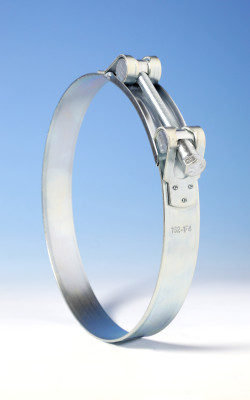

Jubilee Superclamp MS 113-121mm
Part number: JSC121MS
Range: Superclamps(슈퍼클램프)
Material: Mild-Steel
Fastening: 13mm A/F Bolt
Corrosion Resistance (NSS Test): 168h
Industry recommendations:
밴드폭 |
추천토크 |
최대토크 |
최대압력 |
직경 |
|
(mm) |
(Nm) |
(Nm) |
(Psi) |
(min. mm) |
(max. mm) |
25 |
18.5 |
25 |
113 |
121 |
Please note: All technical data is for comparison purposes only. There are many variables in each application, such as hose, ferrule and medium, which make it impossible to provide data that is universally accurate. If you have a specific application please contact us directly for technical assistance.
SAE J1508 Surface Vehicle Standards-Hose Clamp Specifications, Type TB is referenced in the quality control methods for the design/manufacture of the Jubilee Superclamps Range.
