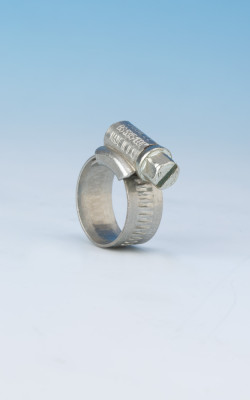

Original Range Jubilee® Clips in zinc protected mild steel are the most popular clips in our range. Ideally suited for most day to day requirements for joining hose in areas, such as the automotive industry and the automotive aftermarket, agricultural applications, such as irrigation and farm machinery, pneumatic and hydraulic applications in the industrial sector, hardware/DIY applications and in construction. This worm drive hose clip has a band that is continuously threaded enabling extra flexibility when adjusting the clip to the correct size. The smooth inside profile of the band and rolled edges give protection for all types of hoses including soft hoses made from rubber or silicone.
Part number: 000MS
Range: Original Jubilee® Clip (오리지널 쥬빌리 클램프)
Material: Mild-Steel
Fastening: 7mm A/F Screw
Corrosion Resistance (NSS Test): 240h
Industry recommendations:
|
밴드폭 |
추천토크 |
최대토크 |
최대압력 |
직경 |
|
|
(mm) |
(Nm) |
(Nm) |
(Psi) |
(min. mm) |
(max. mm) |
|
9.9 |
3.4 |
4.5 |
203 |
9.5 |
12 |
Please note: All technical data is for comparison purposes only. There are many variables in each application, such as hose, ferrule and medium, which make it impossible to provide data that is universally accurate. If you have a specific application please contact us directly for technical assistance.
SAE J1508 Surface Vehicle Standards-Hose Clamp Specifications, Type TB is referenced in the quality control methods for the design/manufacture of the Jubilee Superclamps Range.
